Groundingsam project implemention

'

This document provides a detailed explanation of the code used to clone, install dependencies, and use the `GroundingSam` project to annotate and segment images.

'

Cloning the Repository

!git clone https://github.com/SAAD1190/GroundingSam.git

- Objective: Clone the `GroundingSam` repository from GitHub.

- Explanation: This command downloads the project's source code from the GitHub repository into a directory named `GroundingSam`.

'

Setting the Working Directory

HOME = "/content/GroundingSam"

- Objective: Define a variable `HOME` for the path to the cloned directory.

- Explanation: `HOME` is used to simplify navigation and path management in the subsequent commands. This avoids the need to repeatedly specify the full path to the directory.

'

Navigating to the Directory

%cd {HOME}

- Objective: Change the current working directory to the cloned directory.

- Explanation: This command uses the `HOME` variable to navigate to the `GroundingSam` project directory, ensuring that all subsequent operations are executed in the correct directory.

'

Installing Dependencies

!bash dependencies.sh # Install the necessary dependencies (Ignore the pip dependency)

- Objective: Run the `dependencies.sh` script to install the necessary dependencies.

- Explanation: This script installs all required dependencies for the project, except those to be installed via `pip`. It likely installs project-specific libraries or configures the environment.

'

Creating Directories for Models and Annotations

!mkdir {HOME}/weights
!mkdir {HOME}/annotations

- Objective: Create two directories, `weights` for model weights and `annotations` for annotations.

- Explanation: These directories are created to organize the files needed for the project. The `weights` directory will contain the pre-trained model weights, while the `annotations` directory will store the generated annotation files.

'

Downloading GroundingDINO Model Weights

%cd ./weights
!wget -q https://github.com/IDEA-Research/GroundingDINO/releases/download/v0.1.0-alpha/groundingdino_swint_ogc.pth

- Objective: Navigate to the `weights` directory and download the GroundingDINO model weights.

- Explanation:

- cd ./weights: Changes the current working directory to `weights`.

- wget -q https://github.com/IDEA-Research/GroundingDINO/releases/download/v0.1.0-alpha/groundingdino_swint_ogc.pth Downloads the GroundingDINO model weights from the provided URL. The `-q` option of `wget` makes the download silent, suppressing output.

'

Returning to the Main Directory

%cd {HOME}

- Objective: Return to the project's main directory after downloading the weights.

- Explanation:This command ensures continuity of operations in the main directory.

'

Installing Segment Anything via pip

!pip install 'git+https://github.com/facebookresearch/segment-anything.git'

- Objective: Install the `segment-anything` package from the GitHub repository.

- Explanation: This command installs the package directly via pip using the GitHub repository URL. This integrates the image segmentation functionalities from the Segment Anything project.

'

Downloading SAM Model Weights

%cd ./weights
!wget -q https://dl.fbaipublicfiles.com/segment_anything/sam_vit_h_4b8939.pth

- Objective: Navigate again to the `weights` directory and download the SAM model weights.

- Explanation:

- cd ./weights: Changes the current working directory to weights.

- wget -q https://dl.fbaipublicfiles.com/segment_anything/sam_vit_h_4b8939.pth: Downloads the SAM model weights from the provided URL. The `-q` option of `wget` makes the download silent, suppressing output.

'

Returning to the Main Directory (Again)

%cd {HOME}

- Objective: Return once more to the project's main directory.

- Explanation: Ensures that the following operations are performed in the main directory.

'

Importing and Initializing

from GroundingSam import *
classes = ['piano', 'guitar', 'phone', 'hat']
groundingsam = GroundingSam(classes=classes)

- Objective: Import the necessary modules from the `GroundingSam` project and initialize the `GroundingSam` object with a list of classes.

- Explanation:

- from GroundingSam import Imports all functions and classes from the `GroundingSam` module. This allows easy access to the module's functionalities.

- Classes: Defines a list of object classes to detect and annotate (in this case, 'piano', 'guitar', 'phone', 'hat').

- groundingsam = GroundingSam(classes=classes): Initializes the `GroundingSam` object with the specified classes. This object will be used for detection, annotation, and segmentation.

'

Detection, Annotation, and Segmentation

from GroundingSam import *
detections = groundingsam.get_detections()
groundingsam.annotate_images()
groundingsam.get_masks()

- Objective: Execute the main functions for detecting, annotating, and segmenting images.

- Explanation:

- detections = groundingsam.get_detections() Obtains object detections for the specified classes. This method uses the model weights to detect objects in images.

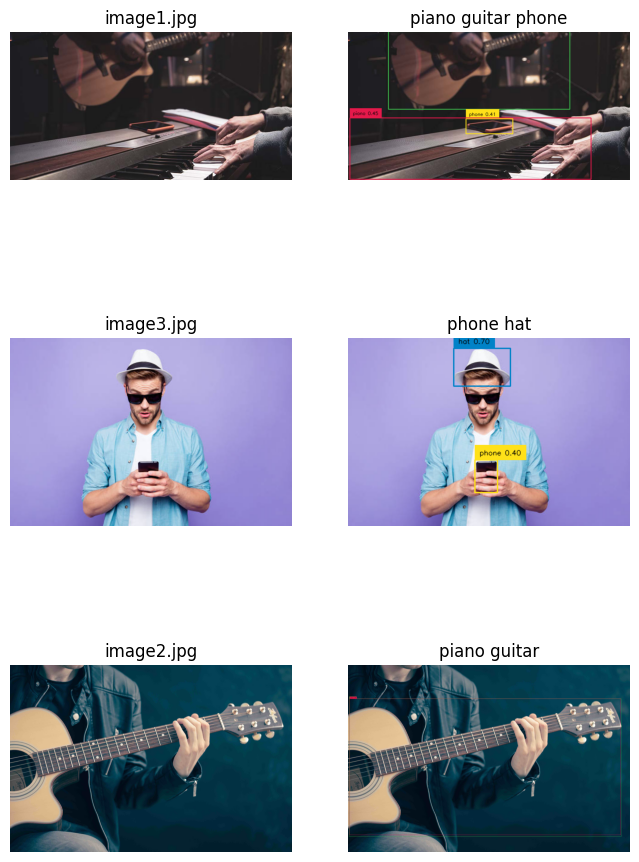

- groundingsam.annotate_images() Annotates the images based on the obtained detections. This method adds visual annotations (such as bounding boxes) to the images to indicate detected objects.

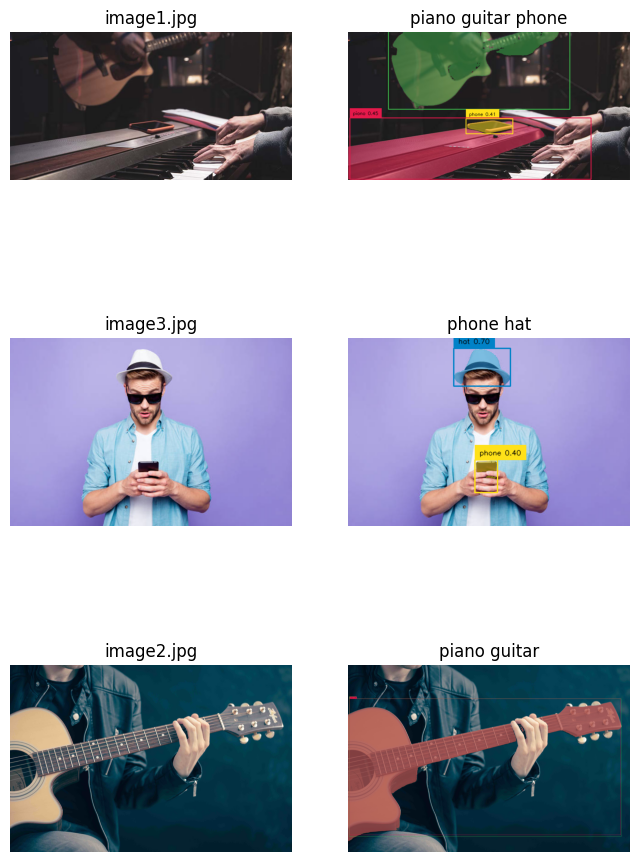

- groundingsam.get_masks() Generates segmentation masks for the detected objects. This method creates pixel-wise masks for each detected object, allowing for precise segmentation.

'

from GroundingSam import *
detections = groundingsam.get_detections()

'

groundingsam.annotate_images()

'

groundingsam.get_masks()

Summary

This code implements and runs the `GroundingSam` project to annotate and segment images using pre-trained models. It includes cloning the repository, installing dependencies, creating directories, downloading model weights, and executing the functions for detection, annotation, and segmentation. The images are annotated with bounding boxes and segmentation masks for the specified classes.
